10G/25G SFP28 Series

10G/25G SFP28 Series

  • Classification：10G/25G SFP28 Series
  • Number of visits：second
  • Date of issue：2026-03-05 13:52:04

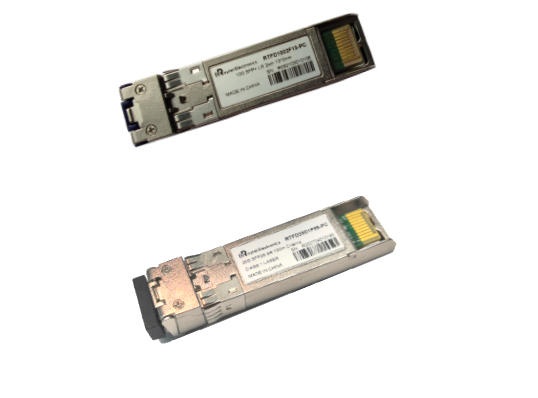

  • Raytel 10G/25G SFP28 series transceivers are designed for high speed data connection ,such as server to TOR switch in datacenter , switch to switch in LAN and Fiber Channel networks etc. The 10G/25G SR/eSR series transceiver are incorporated with 850nm VCSEL and PD . With higher quality and performance , the series transceivers can work under 10G/25G Ethernet and 28G data rate , and the maximum reach can be extended over the standard .
online inquiry
  • Feature
  • Ordering information

¨ Support  25.78G/s  and  28.03G/s with CDR

¨ Support 10.3125G/s

¨ 850nm VCSEL/PD based technology

¨ Up to 300m @25G over OM4 fiber

¨ Positive power supply lines: 3.3 V

¨ Power consumption<1W

¨ ROHS 2.0 compliance




Part Number

Product

Description

Reach

Temp.

Range

TX Wavelength

(nm)

TX Power

(dBm)

RX Wavelength

(nm)

RX Sensitivity

(dBm)

BER

RTFD10D3F85-PC

10G SFP+ SR 300m

300m

C

850

-7.3~-1

850

-11.1

1E-12

RTFD25D1F85-PC

25G SFP28 SR

100m

C

850

-8.4~+2.4

850

-10.3

5E-5

RTFD28D1F85-PC

28G SFP28 SR

100m

C

850

-8.4~+2.4

850

-10.3

5E-5

RTFD25D3F85-PC

25G SFP28 eSR

300m

C

850

-7.4~+2.4

850

-10.5

5E-5
